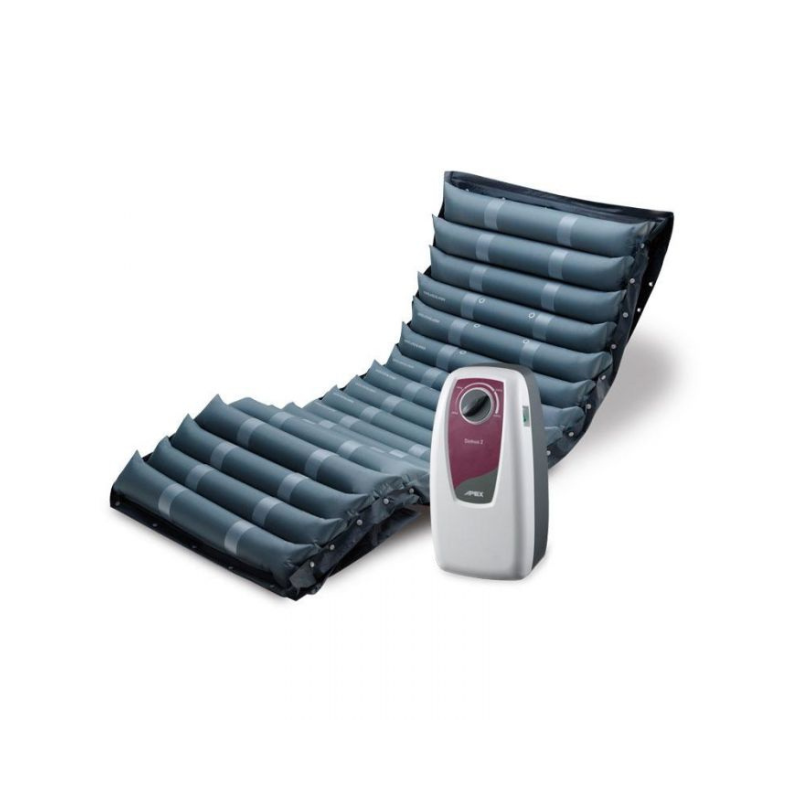

APEX DOMUS 2 Air Mattress Overlay

APEX DOMUS 2 Air Mattress Overlay

The APEX DOMUS 2 Air Mattress Overlay is a valuable overlay system designed for prevention and treatment of patients at low to medium risk of pressure ulcers. By having a series of individual cells inflate and deflate alternatively over a ten minute cycle, the pressure is periodically redistributed by inflating and deflating cells in order to mimic natural sleep movement patterns and avoid long term pressurization of tissue.

DOMUS is a series of therapeutic support surfaces designed for a wide range of conditions from prevention to serious pressure ulcer. With evidence-based development, each model in DOMUS series is verified by Dynamic Pressure Mapping Test to trace real-time internal pressure between the mattress and body to ensure the effectiveness of pressure redistribution to offload the pressure occurring in the deep tissue.

Features/Benefits

Easy to use adjustment settings, Easy to clean zip cover to reduce fluid ingress, Ventilated low-air-loss for patient comfort and

Heavy duty endurance fabric base sheet.

Pump

Dimension

23.7 x 11.2 x 9.5 cm

Weight

1.4 kg

Case Material

Flame retardant ABS

Supply Voltage

AC 230V, 50 / 60 Hz ; 120V, 60Hz

Operating Cycle

9.6 min ( 230V ) ; 8 min ( 120V )

Mattress

4” Overlay Mattress

Dimension

196 x 80 x 10.2 cm

Alternating

1 – in – 2

Cell Height

18 x 4″ cells

Weight

3.8 kg

Cover Material

Nylon / PU

Cell Material

PVC

Maximum Patient Weight

140 kg
