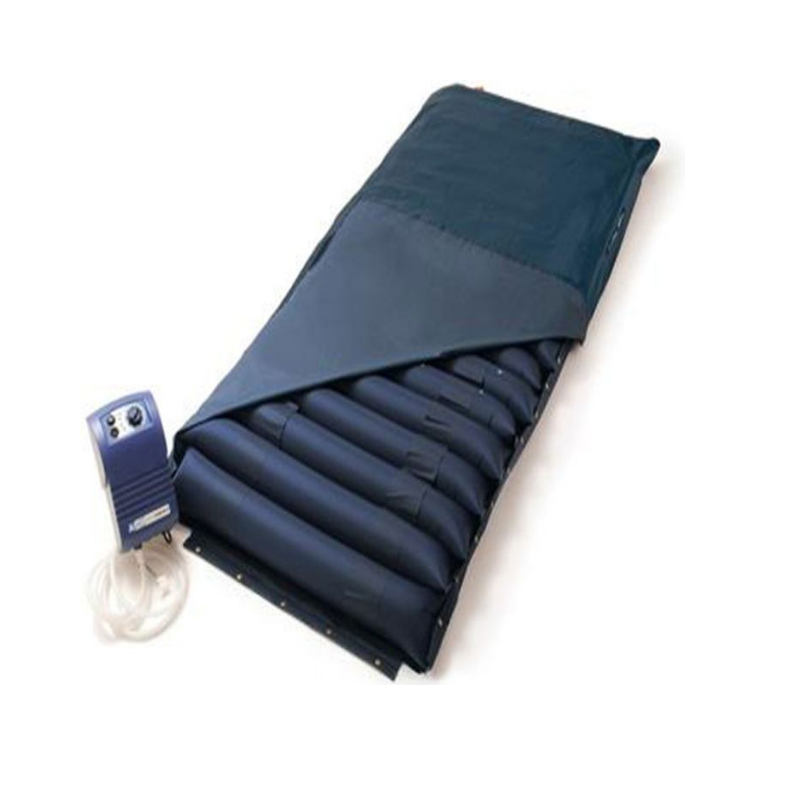

Novocare ASX Basic Alternating Pressure System Overlay

Novocare ASX Basic Alternating Pressure System

The Novocare ASX basic alternating pressure system mattress overlay features nylon/TPU cells, eight of which are micro-perforated. The bi-elastic cover is breathable, PU-coated and has button closures at the head and foot end and an external emergency CPR valve. The control unit of the ASX features digital pressure sensor technology thus ensuring a silent operation and a long product life. The compressors switch off when reaching the pre-set system pressure and only re-activate when a cycle change occurs or to adjust the system pressure if necessary.

Advantages:

longer lifespan

lower noise level

longer service intervals

New feature:

We have implemented an optical and acoustic alarm function for low pressure and timing motor failure

Specification:

Measurements: approx. 300 x 180 x 120 mm

Weight: approx. 2.7 kg

1 membrane compressor, digital control with pressure sensor, alternating pressure, static mode, 12 min. time cycle, low pressure alarm (visual and acoustic)

Measurements inflated (without safety mattress): approx. 200 x 90 x 14 cm

Weight (without safety mattress): approx. 4.1 kg

18 cells, 3 head cells static, non-bending connecting tubes (incl. transportation safety lock), CPR emergency ventilation

Max. patient weight: 130 kg

Pressure ulcer grade: I-II

Indication:

Alternating pressure system for the treatment of pressure ulcers up to grade II (according to EPUAP).
